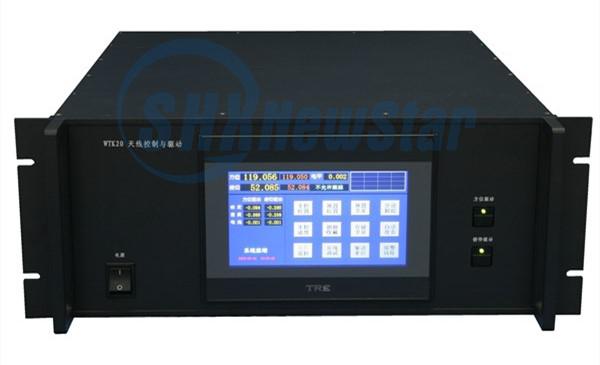

WTK20 Antenna Control and Drive Equipments
-
AC motor frequency conversion adjusting speed drive
-
True color LCD touch -screen displaying operation
-
4U×480 standard cabinet
-
Position display resolution 0.001° RMS
-
Tracking accurancy 1/10 half power beamwidth RMS
-
Antenna control mode:Manual control position,Manual control speed,preset position,preset satellite,step tracking,automatic searching
-
Store and calculate satellites’ antenna position
-
Ⅲ class limit switch,fault self-diagnosis&protection,record
-
Remote control interface:RS485/RS232 optional,internet interface is optional
-
Built-in 70Mhz tracking demodulator is optional
Main Functional Characteristics
● AC motor frequency conversion adjusting speed drive
● True color LCD touch -screen displaying operation
● 4U×480 standard cabinet
● Position display resolution 0.001° RMS
● Tracking accurancy 1/10 half power beamwidth RMS
● Antenna control mode:Manual control position,Manual control speed,preset position,preset satellite,step tracking,automatic searching
● Store and calculate satellites’ antenna position
● Ⅲ class limit switch,fault self-diagnosis&protection,record
● Remote control interface:RS485/RS232 optional,internet interface is optional
● Built-in 70Mhz tracking demodulator is optional
Usage
For dervo control and AC frequency conversion adjusting speeding servo of antennas drived by AC motor
