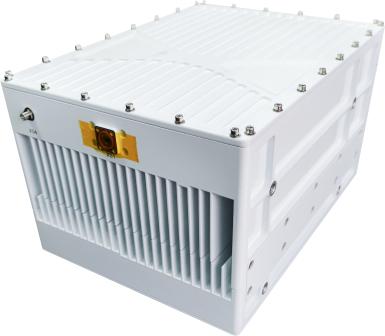

Built-in up converters (optional)
Higher Efficiency and Lower Power Consumption
Compact、Rugged and Weatherproof Package
1:1、2:1 Redundancy Kits Available
Customization service available
RF specifications
|
Power |
Ka 100W |
|
Output Frequency |
27.5～30.0 GHz (LO. Switched: 27.5GHz~28.5GHz; 28.35GHz~29.35GHz; 29GHz~ 30GHz) |
|
Input Frequency |
950~1950 MHz |
|
External Reference Frequency(10MHz) |
0dBm±5dB |
|
Small Signal Gain |
≥70dB |
|
Gain Adjustment
|
20 dB in 1.0 dB steps
|
|
Gain Flatness
|
±2.5 dB（Full Band）/±2.0 dB（1000MHz）/±0.6 dB （40MHz） |
|
Gain Variation (Over temperature)
|
±1 dB |
|
Rated Output Power |
+50dBm |
|
Phase Noise |
@100Hz ≤-63dBc @1KHz ≤-73dBc @10KHz ≤-83dBc @100KHz ≤-93dBc |
|
Output Spurious |
≤-55dBc |
|
IM3 |
≤-25dBc @ 3 dB back-off from Rated Output Power, with respect to each of two equal carriers 5 MHz apart |
|
Input VSWR |
≤2.0：1 |
|
Output VSWR |
≤1.5：1 |
|
Noise Power Density In Transmit Band |
≤-70dBw/4KHz @27.5GHz～30.0 GHz |
|
Noise Power Density In Receive Band |
≤-150dBw/4KHz @17.7GHz~21.2 GHz |
|
Power |
+220VAC |
|
Power Consumption (@Rated Output Power)
|
1000W |
Mechanical specications
|
Power |
100W |
|
Dimensions(L×W×H) |
300mm×220mm×170mm |
|
Weight |
≤15.0Kg |
|
RF Interface |
Input: N-50K Output: WR-28 Coupling Port: 2.92mm-K |
|
Power Interface |
3-Pin AC |
|
M&C Connector |
MIL Circular Connector（Ethernet & RS 485） |
Environmental specificaitons
|
Operating Temperature |
-40°C ～ +60°C |
|
Storage Temperature |
-50°C ～ +80°C |
|
Relative Humidity |
100% |
|
Waterproofing |
IP-66 |
