6.2m X band earth station antenna

Meets or exceeds CCIR 580 and INTELSAT requirements

Ring focus designed;

High gain, Low sidelobe, High G/T rate;

Galvanized steel structure, with strong corrosion resistant ability;

Linear or circular polarization optional;

Frequency can be customized as per request;

Reasonable structure and easy operation.

Request a Quote

Description

Characteristics:

ü Meets or exceeds CCIR 580 and INTELSAT requirements

ü Ring focus designed;

ü High gain, Low sidelobe, High G/T rate;

ü Hot-dip zinc processed Antenna mount, with strong corrosion resistant ability;

ü Linear or circular polarization optional;

ü Reasonable structure and easy operation.

Specifications

RF specifications

Model	NS-SECX-620
Operating Frequency GHz	X band
	Receive
	7.9-8.4 GHz
Antenna gain dBi	52.35@8.25GHz
Polarization	Circular
XPD dB	≥35
Axial Ratio（2 port）	1.3
VSWR	1.25：1
Noise temperature EL : 10° 30° 50°	35K 25K 22K
G/T dB/K，10°El	33.0 dB/K（30°L N A ）
-3dB beam width	0.4°
Insertion loss, dB	≤0.3
Interface	WR112
First sidelobe, dB Far sidelobes, dBi	-14 29 - 25 logθ（1°≤θ＜20°）

Mechanical specifications

Antenna diameter	6.2 m
Antenna type	Ring focus
Antenna mount type	EL over AZ
RMS	≤0.5 mm
Antenna weight（G.W）	3300 kg(manual)
Antenna travel range AZ EL Pol	±80° 5°～90° ±90°
Antenna drive mode	Manual/Motorized

Environment specifications

Working wind speed	72 km/h
Without damage	216 km/h
Working temperature	-20℃～60℃
Humidity	100%
Solar radiation	1135Kcal/h/m²
Ice load	Work normally: 13mm ; without damage: 25mm
Seismic capacity	Horizontal: 0.3G; vertical: 0.1G
Surface treatment	Steel parts: hot dipped galvanized+primer paint+surface paint; Aluminum part: primer paint+surface paint

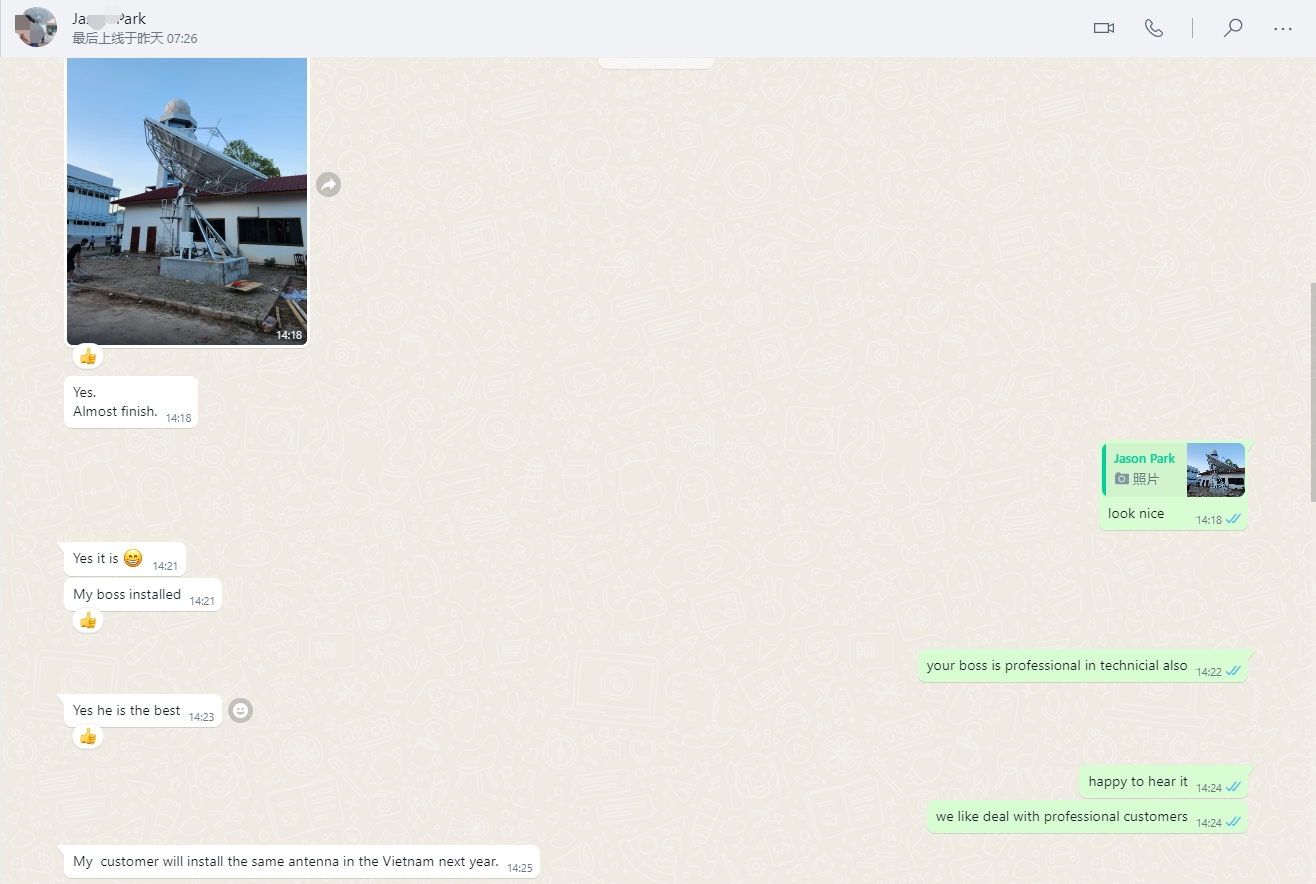

Comments from customer:

The customer is satisfied about the product, so he plan to purchase new one for another site.
