Drive Away Antenna
We provide high-quality drive away antennas to more than 40 countries and regions around the world each year, with sizes of 1.2m, 1.5m, 1.8m and 2.4m, 4m optional, covering C-band, X-band, Ku-band and Ka-band.Drive away antennas are widely used by customers in the fields of disaster relief, oil and gas data backhaul, and national defense and homeland security.
Request a Quote
Drive Away Antenna

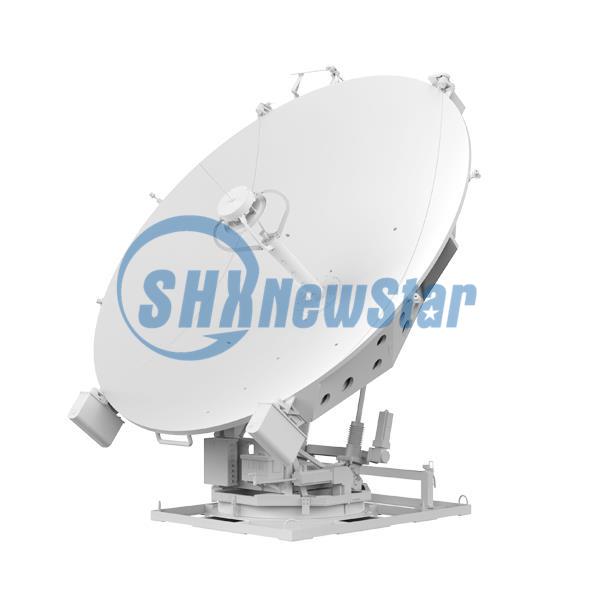

4m Carbon Fiber Transportable Satellite Antenna

Factory Price, OEM, ODM
  1. Support manual, auto, and one-button functions.

  2. Carbon fiber reflector with light weight, high strength, and high accuracy.

  3. Convenient installation on the top of the vehicle.

  4. Support DVB-S, DVB-S2, beacon, and modem in satellite locking within 3 minutes.

  5. Side wing electric deploy and stow.

Request a Quote
Description

Antenna Characteristics

Support manual, auto, and one-button functions.
Carbon fiber reflector with light weight, high strength, and high accuracy.
Convenient installation on the top of the vehicle.
Support DVB-S, DVB-S2, beacon, and modem in satellite locking within 3 minutes.
Side wing electric deploy and stow.

Antenna Specifications

Item name 4m Ku SNG antenna Antenna type Cassergrain
Reflector size Equivalent 4 meters Reflector type 3 segmented auto foldable
Antenna freq. Rx: 10.7~12.75GHz Antenna gain Rx≥51.6+20lg(f/11.725)dB
  Tx: 13.75~14.5GHz   Tx≥53.2+20lg(f/14.125)dB
Rx-Tx isolation Rx Tx VSWR Rx: Tx
  100dB 85dB   1.5:1 1.4:1
Interface   Rx Tx Insertion loss Rx Tx
  WR75 WR75   0.45dB 0.35dB
Power capacity 2KW First side lobe ≤-14dB
Cross-pol isolation ≥35dB Manual drive AZ/EL/antenna segmented panel
Power supply AC110~230V 50 /60Hz Auto acquisition time 15min(including deploying time)
Antenna travel range AZ: ±110° Travel speed AZ: 0.1~3°/S
  EL: 0~90°   EL: 0.1~0.4°/S
  Pol: ±90°   Pol: 0.1~3°/S
Surface treatment Primer and finish paint System weight
Working temperature -25°C - +55°C Operation wind speed 48~72Km/H(max20m/S)
Storage temperature -40°C - +60°C Survival wind speed 129Km/H(max35.83 m/s)
Humidity 95%  40℃ Survival in any position 105~129Km/H(max35.83m/s)
Wind loss 10m/S  0.2dB Wind speed(stored) 201 Km/H(56 m/s)
  28m/S  0.5dB Operating rain 50 mm/h
Survival icing 25mm Survival rain 102 mm/h
Vibration Consistent with railway, road and air shipping Solar radiation 1135W/m2
Consult an antenna expert now to purchase or customize your antenna.
