Drive Away Antenna
We provide high-quality drive away antennas to more than 40 countries and regions around the world each year, with sizes of 1.2m, 1.5m, 1.8m and 2.4m, 4m optional, covering C-band, X-band, Ku-band and Ka-band.Drive away antennas are widely used by customers in the fields of disaster relief, oil and gas data backhaul, and national defense and homeland security.
Request a Quote
Drive Away Antenna

1.2m Fiberglass Drive-away Antenna

Factory Price, OEM, ODM
  1. Meets or exceeds CCIR 580 and INTELSAT requirements;

  2. Long focal length optics for low cross-pol performance;

  3. Modular design, easy to maintain and repair;

  4. Long focal length optics for low cross-pol performance;

  5. Conform to CE, FCC and RoHS certificates standard;

  6. Designed for installation on SUV, Minivan or MPV with little vehicle modification;

  7. Optional wireless control methods based on Wifi;

  8. Applied for Satellite News Gathering, Emergency Response, Oil & Gas Industry and so on.

Request a Quote
Description

1.2m fiberglass driveaway antenna characteristics

Meets or exceeds CCIR 580 and INTELSAT requirements;

Long focal length optics for low cross-pol performance;

Modular design, easy to maintain and repair;

Long focal length optics for low cross-pol performance;

Conform to CE, FCC and RoHS certificates standard;

Designed for installation on SUV, Minivan or MPV with little vehicle modification;

Optional wireless control methods based on Wifi;

Applied for Satellite News Gathering, Emergency Response, Oil & Gas Industry and so on.

1.2m fiberglass driveaway antenna standard configuration

Main reflector, subreflector, subreflector support, back support frame, kingpost, feed, solid wretch, foundation template and standard component.

1.2m fiberglass driveaway antenna optional parts

BUC, LNB, Modem, spectrum analyzer, moving foundation, de-icing equipment, BUC fix bracket, servo system, motorized polarization, 4-port feed, lightning protection device, installation tools, cable and connector.

1.8m Ka band VSAT antenna
1.8m Ka band VSAT antenna
1.8m Ka band VSAT antenna

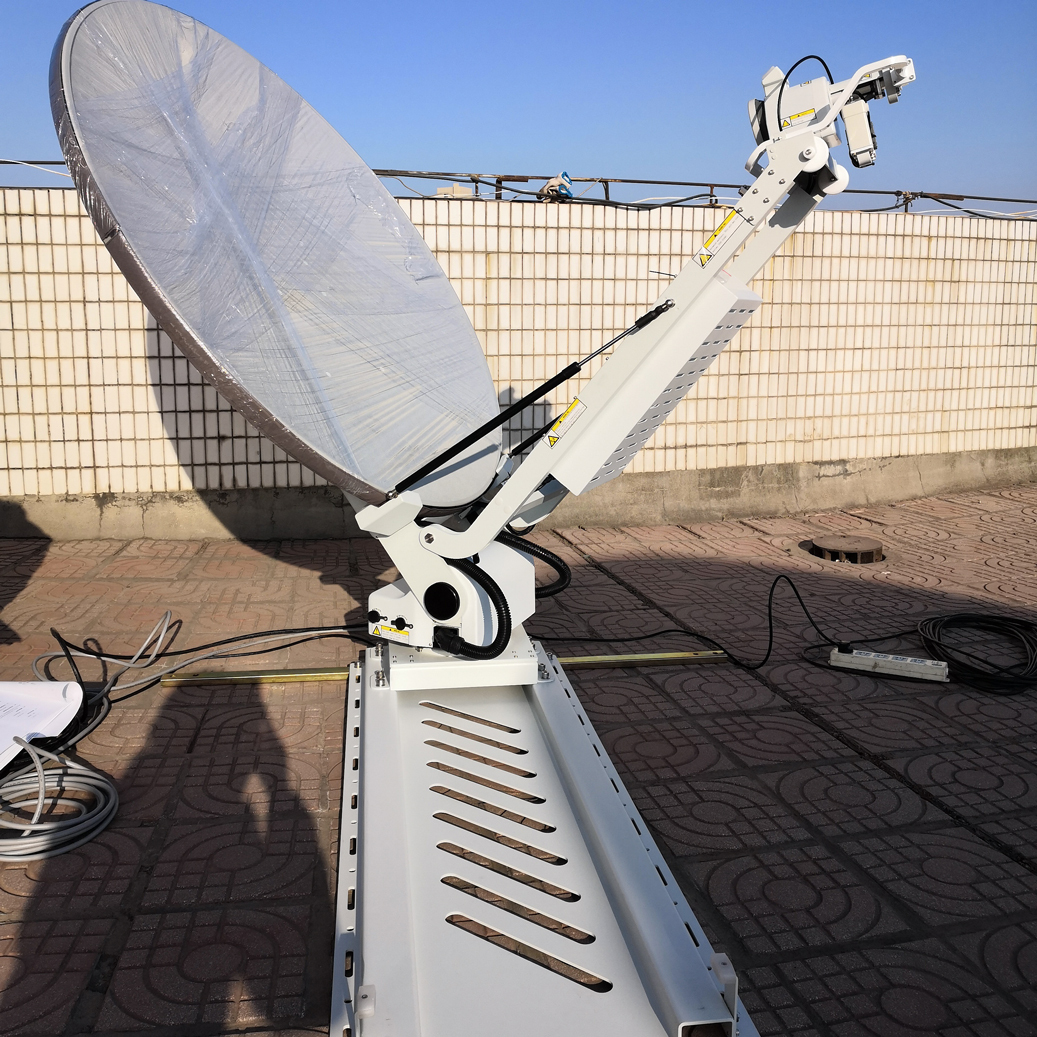

1.2m driveaway antenna front  view 1

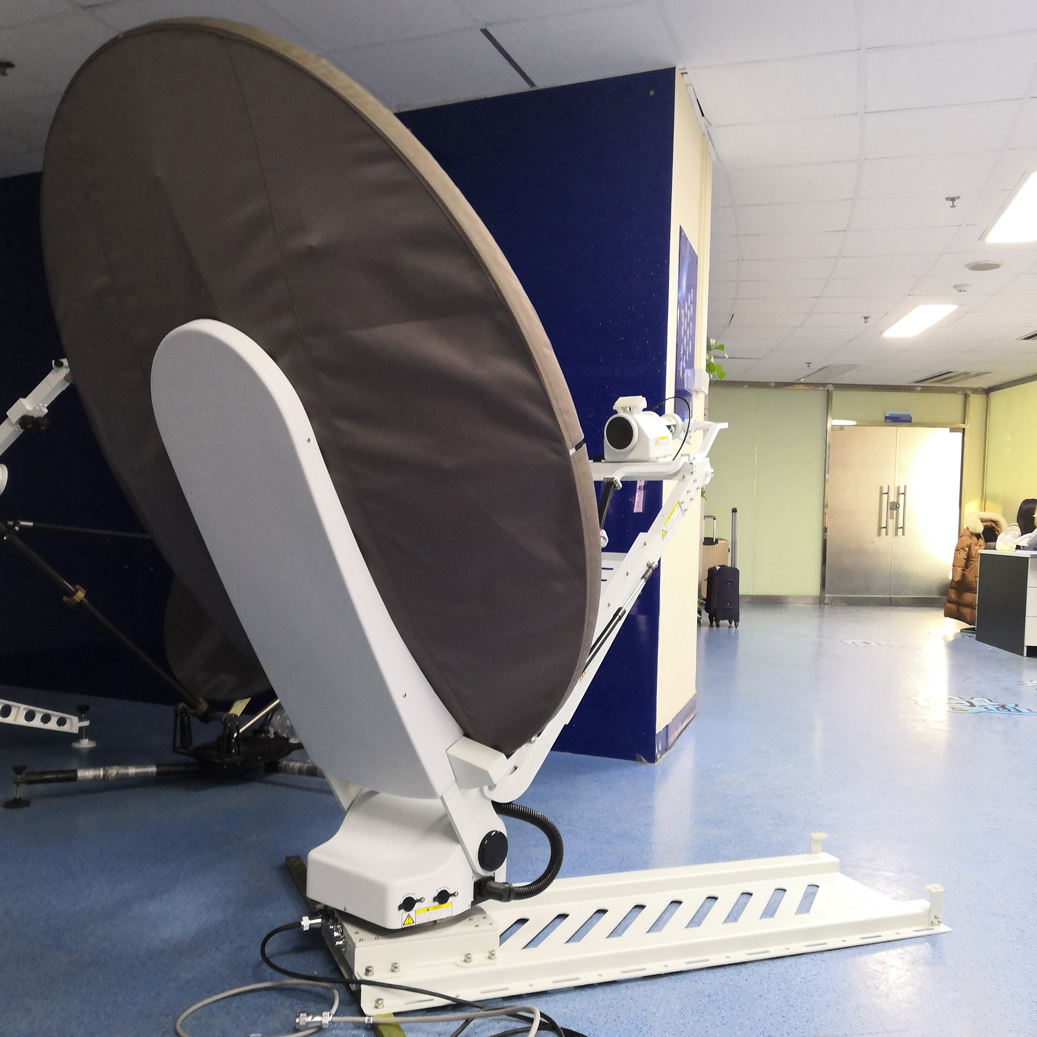

1.2m driveaway antenna side view 2

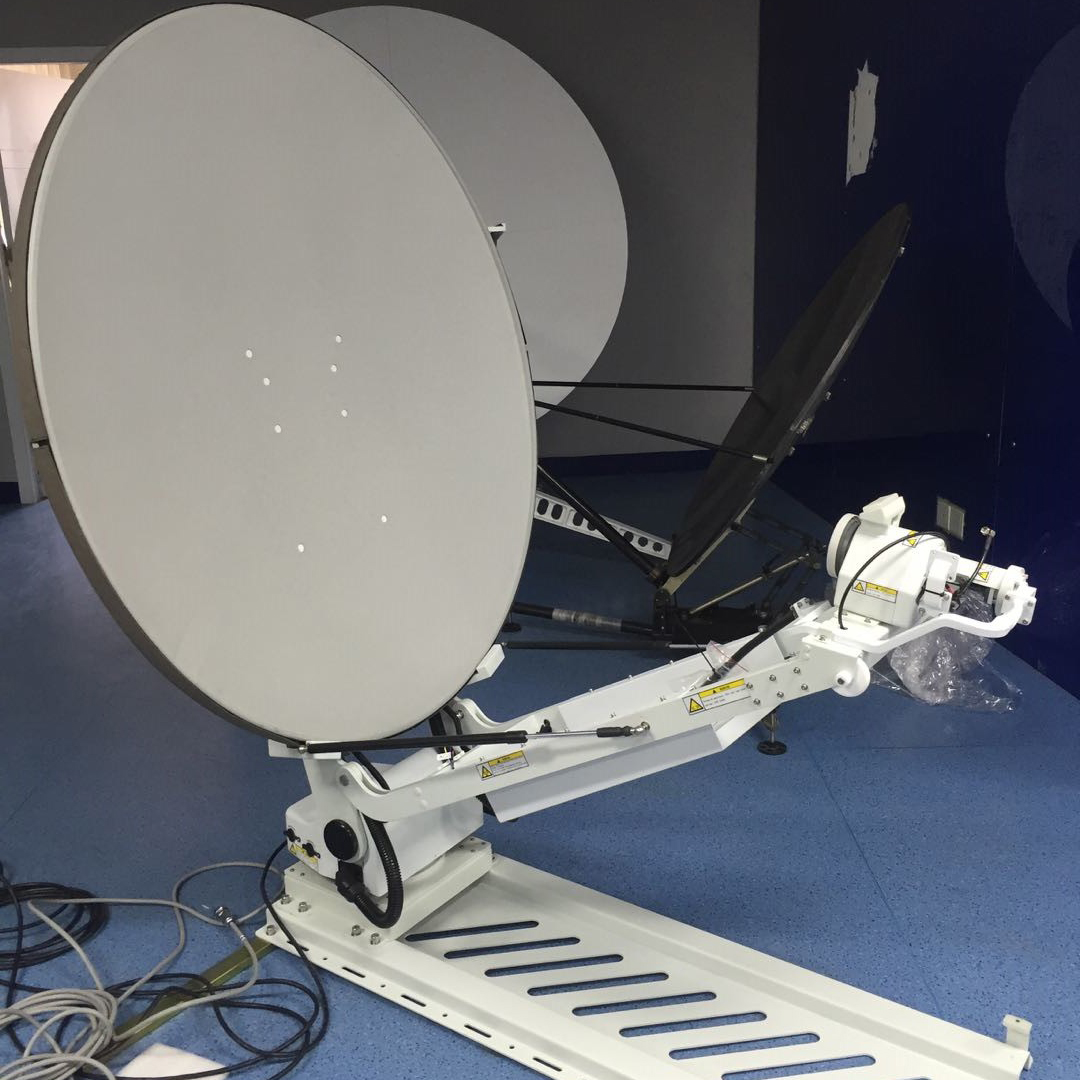

1.2m driveaway antenna side view 3

Antenna specifications

Model NS-SNG-120 NS-SNG-150
Antenna and feed
Antenna type Single offset Single offset
Antenna size 1.2m 1.5m
Receive frequency 10.7~12.75GHz 10.7~12.75GHz
Transmit frequency 13.75~14.5GHz 13.75~14.5GHz
Polarization mode Linear Linear
Antenna gain (dBi±0.3) Rx 41.8dBi 44.0dBi
  Tx 43.3dBi 45.3dBi
Polarization isolation 35dB (on aixis) 30dB(1dB) 35dB (on aixis) 30dB(1dB)
Sidelobe characteristics 100λ/D 29-25log10θdBi -3.5dBi 32-25log10θdBi -10dBi 100λ/D

Servo system and controller

Signal tracking mode DVB S1/S2, beacon receiver       (hot backup), Modem SNR DVB S1/S2, beacon receiver       (hot backup), Modem SNR
Tracking accuracy 0.2° 0.1°
Satellite positioning time ≤3min
Antenna rotating speed EL AZ Pol 0.1-9°/s 0.1-9°/s 0.1-12°/s 0.1-9°/s 0.1-9°/s 0.1-12°/s
Control mode Wired control, wireless(wifi) are optional
Control terminal Antenna controller, standard 19inch 1U cabinet, 2.5kg
Power supply 90-264VAC, 47-63Hz
Power consumption(exclude BUC) ≤240W ≤300W

Structural characteristics

Antenna net weight ≤65kg ≤110kg
Antenna size 175cm(L)×124cm(w)×30cm(H) 200cm(L)×150cm(w)×41cm(H)
Working range
 AZ
 EL
 Pol

 ±230°
 10°-90°
 ±95°

 ±200°
 10°-90°
 ±95°

Working condition

Working temperature Ring focus
Storage temperature EL over AZ
Wind capacity Working wind speed: 20m/s Survival wind speed(deploy):30.5m/s Survival wind speed(stow): 61m/s
Rain ≤100mm/h
Protection level IP65
Consult an antenna expert now to purchase or customize your antenna.
